Analog KVM Switches

DAV2108
DAV2216

Analog KVM Datasheet Warranty Datasheet

Americas

SIPS and Accessories for Analog KVM

Dell SKUMFG PNDescription
A7547276DMPUIQ-VMCHS-G01USB2.0 and VGA for analog and digital KVM switches
AA595860DUSBIAC2-10USB Interface cable for use with analog KVM switches, 10 ft.
AA595864DUSBIAC2-7USB Interface cable for use with analog KVM switches, 7 ft.
A7485897DRAK-KeyRemote Access key for Dell analog KVM switches

DAV2108

Dell SKUMFG PNDescription
A7546776DAV2108-G018-port analog, upgradeable to digital KVM switch with one local user, single power supply – TAA Compliant

Extended Warranties

Dell SKUMFG PNDescription
A75472974YSLV-DAV21084 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2108
A75472985YSLV-DAV21085 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2108
A75473034YGLD-DAV21084 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2108
A75473045YGLD-DAV21085 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2108

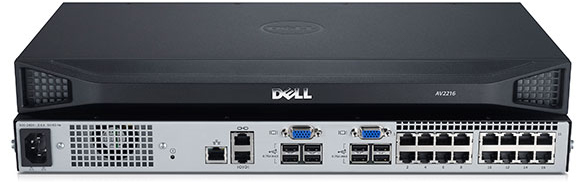

DAV2216

Dell SKUMFG PNDescription
A7546777DAV2216-G0116-port analog, upgradeable to digital KVM switch with two local users, single power supply – TAA Compliant

Extended Warranties

Dell SKUMFG PNDescription
A75473004YSLV-DAV22164 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2216
A75473015YSLV-DAV22165 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2216
A75473064YGLD-DAV22164 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2216
A75473075YGLD-DAV22165 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2216

EMEA

SIPS and Accessories for Analog KVM

Dell SKUMFG PNDescription
A7485901DMPUIQ-VMCHSUSB2.0 and VGA for analog and digital switches
AA632158DUSBIAC2-10USB Interface cable for use with analog KVM switches, 10 ft.
AA632177DUSBIAC2-7USB Interface cable for use with analog KVM switches, 7 ft.
A7485897DRAK-KeyRemote Access key for Dell Analog KVM switches

DAV2108

Dell SKUMFG PNDescription
A7485895DAV21088-port analog, upgradeable to digital KVM switch with one local user, single power supply

Extended Warranties

Dell SKUMFG PNDescription
A75472974YSLV-DAV21084 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2108
A75472985YSLV-DAV21085 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2108
A75473034YGLD-DAV21084 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2108
A75473045YGLD-DAV21085 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2108

DAV2216

Dell SKUMFG PNDescription
A7485896DAV221616-port analog, upgradeable to digital KVM switch with two local users, single power supply

Extended Warranties

Dell SKUMFG PNDescription
A75473004YSLV-DAV22164 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2216
A75473015YSLV-DAV22165 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2216
A75473064YGLD-DAV22164 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2216
A75473075YGLD-DAV22165 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2216

EMEA Emerging Countries

SIPS and Accessories for Analog KVM

Dell SKUMFG PNDescription
470-ABDLDMPUIQ-VMCHSUSB2.0 and VGA for analog and digital switches
481-BBEPDUSBIAC2-10USB Interface cable for use with analog KVM switches, 10 ft.
409-BBDTDRAK-KeyRemote Access key for Dell analog KVM switches

DAV2108

Dell SKUMFG PNDescription
450-ADZMDAV21088-port analog, upgradeable to digital KVM switch with one local user, single power supply

Extended Warranties

Dell SKUMFG PNDescription
340-ALCR5YSLV-DAV21085 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2108

DAV2216

Dell SKUMFG PNDescription
450-ADZZDAV221616-port analog, upgradeable to digital KVM switch with two local users, single power supply

Extended Warranties

Dell SKUMFG PNDescription
340-ALCU5YSLV-DAV22165 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2216

APJ

SIPS and Accessories for Analog KVM

Dell SKUMFG PNDescription
470-ABDLDMPUIQ-VMCHSUSB2.0 and VGA for analog and digital switches
470-ADPCDUSBIAC2-10USB Interface cable for use with analog KVM switches, 10 ft.
409-BBDTDRAK-KeyRemote Access key for Dell analog KVM switches

DAV2108

Dell SKUMFG PNDescription
450-ADZMDAV21088-port analog, upgradeable to digital KVM switch with one local user, single power supply

Extended Warranties

Dell SKUMFG PNDescription
340-ALCR5YSLV-DAV21085 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2108
340-ALDH5YGLD-DAV21085 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2108

DAV2216

Dell SKUMFG PNDescription
450-ADZZDAV221616-port analog, upgradeable to digital KVM switch with two local users, single power supply

Extended Warranties

Dell SKUMFG PNDescription
340-ALCU5YSLV-DAV22165 Year Silver Hardware Maintenance by Vertiv for the Dell DAV2216
340-ALDK5YGLD-DAV22165 Year Gold Hardware Maintenance by Vertiv for the Dell DAV2216

About Analog KVM Switches

More Information / Ready to Buy

Dell KVM Server Console switches by Vertiv are ideally suited for environments where remote access is not required but maximum security is essential.The Analog Server Console switch is an excellent choice where real-time video and mouse response are required. Its responsiveness is not impacted by the need to digitize and transmit video frames, mouse and keystroke events. For high resolution requirements of a Network Operation Center, the Server Console switches can support resolutions of up to 1600×1200 and widescreen resolutions of up to 1680×1050.

Dell analog KVM server consoles provides flexibility to customers who may want to implement remote access in the future, but who are not ready to make that commitment at the time of purchase. The digital capabilities of the Server Console switch are ‘unlocked’ by plugging the Remote Access Key into any one of the USB ports of the rear of the switch. With the Remote Access Key installed, one authenticated digital user can remotely manage any one of the servers connected to the Server Console switch over a TCP/IP network with support for DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions over a single IP address. With the Remote Access Key, the look-and-feel of the On-Board Web Interface (OBWI) matches the sophistication of the OBWI found on the Dell Remote Console switches. The user is able to manage remote operating system installations, operating system recoveries, BIOS updates or server backups from any location with Internet access. The OBWI is launched directly from the Server Console switch and does not require a software host.

Support for currently shipping Dell KVM and KMM products is provided by Vertiv. 3 years of Vertiv Basic Service, including Advanced Replacement, is included with your purchase. More information on support and service options.

Note: the Analog KVM Server Console switches are not compatible with the True Serial SIP.

Analog KVM Features and Benefits

  • Add a digital channel via a physical USB hardware key
  • 1 or 2 local users
  • Local console USB
  • Widescreen support
  • Hi-res to 1600×1200 (standard) and 1680×1050 (widescreen)
  • ACI support for cascading up to 256 servers
  • Dell ReadyRails™ mounting interface
  • TAA Compliant
