Keyboard, Mouse, & Monitor (KMM) Consoles

KMMLED185 Datasheet KMMLED156 Datasheet Warranty Datasheet

Americas

18.5″ KMM Console SKUs

Dell SKUMFG PNDescription
A7546778DKMMLED185-G01English Language Keyboard- TAA Compliant – Dell 18.5” DKMMLED185-G01
A7485910DKMMLED185-207Spanish Language Keyboard – Dell 18.5” DKMMLED185-207
A7485911DRMK-77Bracket kit to mount the currently shipping KVMs behind the 18.5” KMM in 1U

Extended Warranties

Dell SKUMFG PNDescription
A75473094YSLV-DKMMLED1854 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473105YSLV-DKMMLED1855 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473113YGLD-DKMMLED1853 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473124YGLD-DKMMLED1854 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473135YGLD-DKMMLED1855 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED185

15.6″ KMM Console SKUs

Dell SKUMFG PNDescription
AA632196DKMMLED156-001English Language Keyboard- TAA Compliant – Dell 15.6” DKMMLED156-001
AA595880DKMMLED156-207Spanish Language Keyboard – Dell 18.5” DKMMLED156-207
AA595859DRMK-81Bracket kit to mount the currently shipping KVMs behind the 15.6” KMM in 1U

Extended Warranties

Dell SKUMFG PNDescription
AA5958774YSLV-DKMMLED1564 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA5958885YSLV-DKMMLED1565 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA5958873YGLD-DKMMLED1563 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA5958904YGLD-DKMMLED1564 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA5958895YGLD-DKMMLED1565 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156

EMEA

18.5″ KMM Console SKUs

Dell SKUMFG PNDescription
A7485911DRMK-77Bracket kit to mount the currently shipping KVMs behind the 18.5″ LCD in 1U
A7485910DKMMLED185-207Spanish Language Keyboard – Dell 18.5″ DKMMLED185-207, 1U
A7485906DKMMLED185-001International English Language Keyboard – Dell 18.5″ DKMMLED185-001, 1U
A7485907DKMMLED185-201UK English Language Keyboard – Dell 18.5″ DKMMLED185-201 1U
A7485908DKMMLED185-204French Language Keyboard – Dell 18.5″ DKMMLED185-204 1U
A7485909DKMMLED185-205German Language Keyboard – Dell 18.5″DKMMLED185-205 1U

Extended Warranties

Dell SKUMFG PNDescription
A75473094YSLV-DKMMLED1854 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473105YSLV-DKMMLED1855 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473124YGLD-DKMMLED1854 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED185
A75473135YGLD-DKMMLED1855 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED185

15.6″ KMM Console SKUs

Dell SKUMFG PNDescription
AA632291DRMK-81Bracket kit to mount the currently shipping KVMs behind the 15.6″ LCD in 1U
AA632272DKMMLED156-207Spanish Language Keyboard – Dell 15.6″ DKMMLED156-207, 1U
AA632196DKMMLED156-001International English Language Keyboard – Dell 15.6″ DKMMLED156-001, 1U
AA632215DKMMLED156-201UK English Language Keyboard – Dell 15.6″ DKMMLED156-201 1U
AA632234DKMMLED156-204French Language Keyboard – Dell 15.6″ DKMMLED156-204 1U
AA632253DKMMLED156-205German Language Keyboard – Dell 15.6″ DKMMLED156-205 1U

Extended Warranties

Dell SKUMFG PNDescription
AA6323294YSLV-DKMMLED1564 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA6323475YSLV-DKMMLED1565 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA6323653YGLD-DKMMLED1563 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA6323834YGLD-DKMMLED1564 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156
AA6324015YGLD-DKMMLED1565 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156

EMEA Emerging Countries

18.5″ KMM Console SKUs

Dell SKUMFG PNDescription
481-BBBDDRMK-77Bracket kit to mount the currently shipping KVMs behind the 18.5” KMM in 1U
481-BBBCDKMMLED185-001International English Language Keyboard- KMM for Dell, 18.5”, 1U
481-BBBIDKMMLED185-204French Language Keyboard- KMM for Dell, 18.5”, 1U

Extended Warranties

Dell SKUMFG PNDescription
340-ALDN5YSLV-DKMMLED1855 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED185

15.6″ KMM Console SKUs

Dell SKUMFG PNDescription
481-BBEUDRMK-81Bracket kit to mount the currently shipping KVMs behind the 15.6” KMM in 1U
481-BBEQDKMMLED156-001International English Language Keyboard- KMM for Dell, 15.6”, 1U
481-BBERDKMMLED156-204French Language Keyboard- KMM for Dell, 15.6”, 1U

Extended Warranties

Dell SKUMFG PNDescription
481-BBES5YSLV-DKMMLED1565 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED156

APJ

18.5″ KMM Console SKUs

Dell SKUMFG PNDescription
481-BBBDDRMK-77Bracket kit to mount the currently shipping KVMs behind the 18.5” KMM in 1U
481-BBBCDKMMLED185-001International English Language Keyboard- KMM for Dell, 18.5”, 1U
481-BBBFDKMMLED185-103Simplified Chinese Language Keyboard- KMM for Dell, 18.5”, 1U
481-BBBHDKMMLED185-104Korean Language Keyboard- KMM for Dell, 18.5”, 1U
481-BBBEDKMMLED185-109Traditional Chinese Language Keyboard- KMM for Dell, 18.5”, 1U
481-BBBGDKMMLED185-110Japanese Language Keyboard- KMM for Dell, 18.5”, 1U

Extended Warranties

Dell SKUMFG PNDescription
340-ALDN5YSLV-DKMMLED1855 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED185
340-ALDQ5YGLD-DKMMLED1855 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED185

15.6″ KMM Console SKUs

Dell SKUMFG PNDescription
481-BBDYDRMK-81Bracket kit to mount the currently shipping KVMs behind the 15.6” KMM in 1U
481-BBDXDKMMLED156-001International English Language Keyboard- KMM for Dell, 15.6”, 1U
481-BBEDDKMMLED156-101Traditional Chinese Language Keyboard- KMM for Dell, 15.6”, 1U
481-BBEEDKMMLED156-103Simplified Chinese Language Keyboard- KMM for Dell, 15.6”, 1U
481-BBECDKMMLED156-104Korean Language Keyboard- KMM for Dell, 15.6”, 1U
481-BBDZDKMMLED156-110Japanese Language Keyboard- KMM for Dell, 15.6”, 1U

Extended Warranties

Dell SKUMFG PNDescription
340-CMWI5YSLV-DKMMLED1565 Year Silver Hardware Maintenance by Vertiv for the Dell DKMMLED156
340-CMWJ5YGLD-DKMMLED1565 Year Gold Hardware Maintenance by Vertiv for the Dell DKMMLED156

About KMM Consoles

In order to mount your Dell KVM by Vertiv in the same 1U, you must order the 1U KVM Mounting Kit (DRMK-77 or DRMK-81) with your Dell 1U Rackmount KMM (1U KMM).

More Information / Ready to Buy

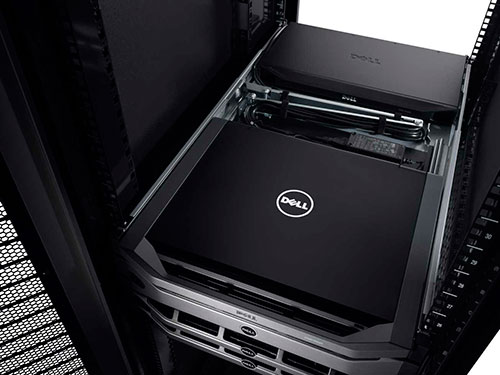

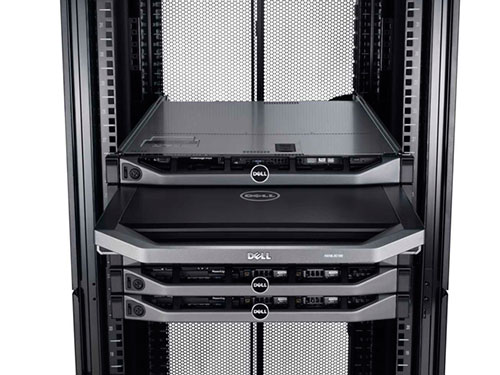

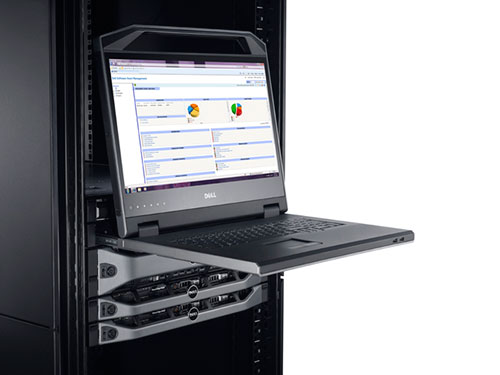

The DKMMLED 1U Rackmount LED Console offer IT managers the ability to install a single, integrated user KMM console (keyboard, monitor, and mouse) in a 1U (1.75″) form factor. Combining a thin 18.5-inch or 15.6-inch LED-backlit widescreen with an integrated touchpad mouse & keyboard, the 1U Rackmount LED console can be attached to any Dell KVM console switch to manage the setup, administration, and maintenance of multiple rack-mount servers. The 1U Rackmount LED console provides a system administrator’s control station mounted directly into a rack without sacrificing the rack space needed for servers and other peripherals. The KMM’s space-saving design enables the KMM to be mounted in the same rack U-space with any currently shipping Dell KVM console switch, making the 1U Rackmount LED Console ideal for deployment in high density racks. The KMM console’s mounting system enables tool-less installation in most racks.

The ultra-slim KMM LED console is designed with the latest flat-panel display technology. Its eco-friendly display utilizes LED backlighting and has none of the mercury vapor found in traditional LCD consoles that use CCFL (Common Cathode Florescent Lamps) backlighting. The widescreen display supports both legacy server video modes and widescreen video modes, making it easier to work with multiple windows open at one time.  The KMM console supports multiple enterprise configurations. It can be connected directly to the keyboard, video, and mouse ports of a single rack-mounted server for a simple one-to-one interface, or it can be attached to a rack-mounted Dell EMC DAV or DMPU KVM. A KVM console switch maintains the electrical connection to each server as the KMM console is switched by the KVM among the connected systems.

Support for currently shipping Dell KVM and KMM products is provided by Vertiv. Three years of Vertiv Basic Service, including Advanced Replacement is included with your purchase. Enhanced warranty options are also available. More information on support and service options.

This KMM console can be purchased as an accessory to a Dell rack, a Dell KVM, or as a customer kit.

Features and Benefits:

  • TAA Compliant
  • Easily Deployed: tool-less installation
  • Saves Valuable Rack Space: can share its 1U space with any Dell KVM
  • Eco-Friendly: LED-backlit console, free of mercury vapor found in typical LCD consoles
  • Multiple video modes: supports both legacy server video modes and widescreen video modes
  • SuperSpeed USB: dual USB pass-thru ports for faster media access to servers, USB 3.0 on the 18.5” and 2.0 on the 15.6”.
  • Touchpad with palm rejection technology on the 18.5”: allows user to rest palm on touchpad w/o inadvertently activating it
  • Full HD Resolution on the 15.6”
  • VGA, DVI, and DisplayPort video input options on the 15.6”: provides more flexibility for video options
  • Modular design with a removable USB keyboard for the 15.6”: simplifies installation and serviceability
